AC Diamond Shape Coil

Personal Info

Product's Info

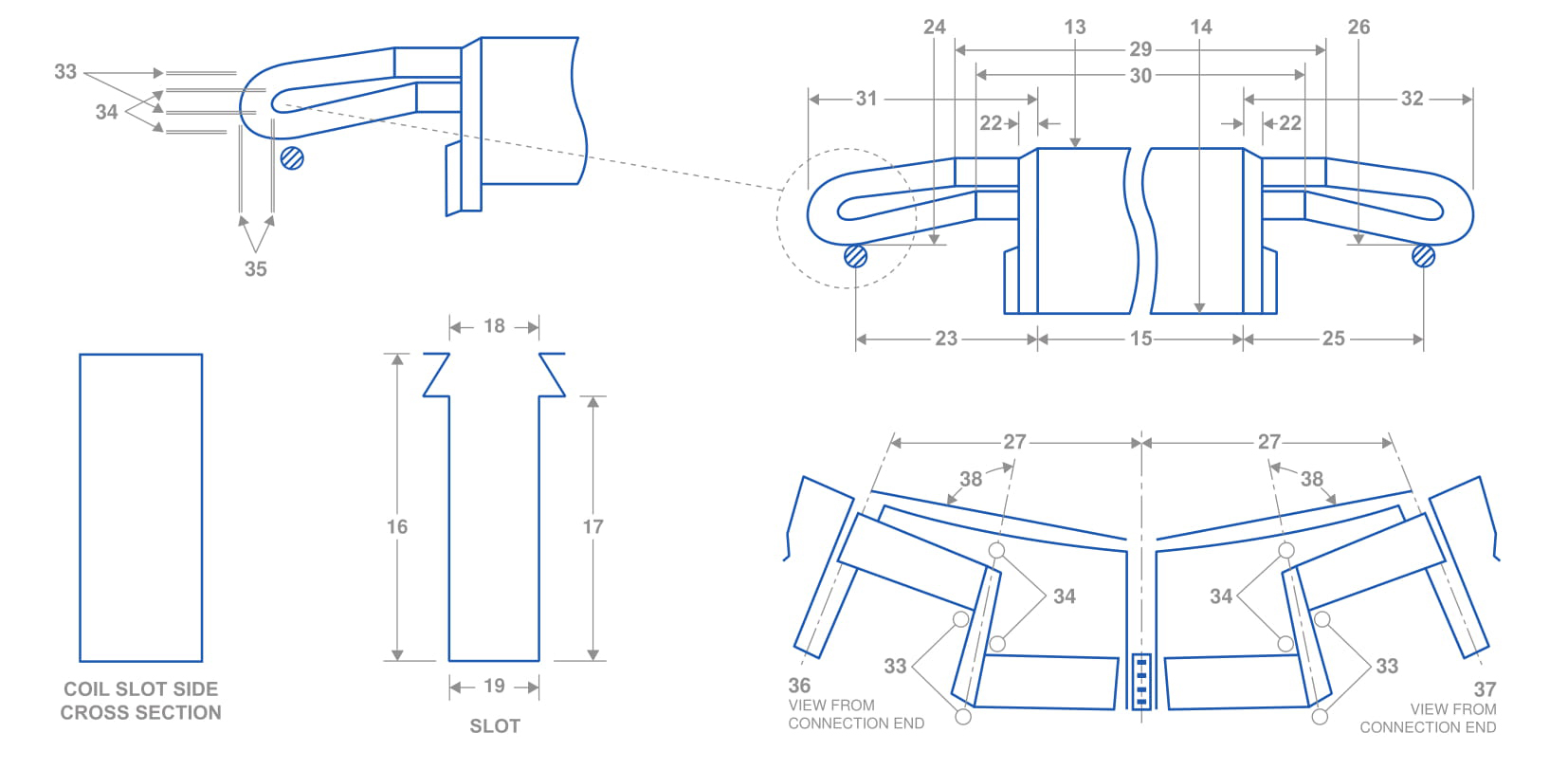

1. Make Of Machine

2. Serial Number

3. Frame Number

4. Rated Output (HP / k.V.A / kW)

5. Voltage (V)

6. Current (A)

7. Frequency (Hz)

8. Phase

9. Insulation Class

10. Rated Speed (rpm)

11. Number Of Slots

12. Number Of Coils

13. Core Bore

14. Core Outside Diameter

15. Core Length

16. Slot Depth

17. Coil Space

18. Slot Width Top

19. Slot Width Bottom

20. Is Slot Skewed

21. Skewing Direction

22. Finger Plate Width

23. Connection End Ring Extension

24. Connection End Ring Diameter

25. Back End Ring Extension

26. Back End Ring Diameter

27. Coil Span

28. Connected Star Or Delta

29. Coil Slot Length Top

30. Coil Slot Length Bottom

31. Connection End Coil Projection

32. Back End Coil Projection

33. Lead Position ABC

34. Throw Direction AB

35. Evolute Angle

36. Number Of Turns Per Coil

37. Bare Conductor Width

38. Bare Conductor Thickness

39. Number Of Conductors In Parallel
